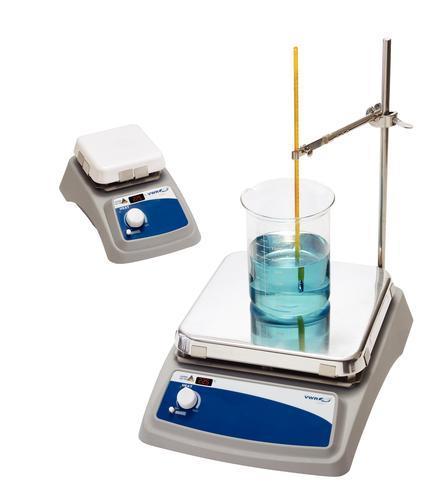

VWR® Advanced Hot Plates（VWR加热磁力搅拌器）
- Excellent Temperature Uniformity
- Microprocessor Controlled
- Cool Touch, Chemical-Resistant Housing
- LED Display For Temperature
- Now with Best in Class, Exclusive 5-Year Warranty
Advanced hot plates are designed to deliver accurate and repeatable results in general-purpose laboratory applications. These microprocessor controlled units feature a front-facing control panel with an easy-to-read LED that displays set-point temperature. Enhanced electronics regulate the robust heater, which brings samples to the desired temperature quickly and efficiently. The low profile design utilizes minimal bench space and permits use within a fume hood. Unit housing is constructed of a heat- and chemical-resistant polymer that remains cool to the touch during operation. The spill-resistant design channels fluids away from internal components in the event of spills.
Hot plates are available with ceramic or aluminum top plate material. Reflective white ceramic tops are chemical-resistant and easy to clean. Durable aluminum tops will not crack or chip, and offer a more even heating surface. A built-in memory recall provides users with the last set temperature, even after the unit has been turned off. For additional safety, a hot symbol warning light is illuminated when the hot plate is in use, and remains lit until the top plate is sufficiently cooled.
Ordering Information: Units are supplied with a 234cm (92") three-wire cord and plug. The optional support rod and clamp kit includes a 45.7cm (18") long stainless steel support rod, a thermometer/temperature probe extension clamp, a three-prong dual-adjust swivel clamp, and hook connector. 230V, 50/60Hz models are also available; contact your VWR sales representative for more information.
参数
Operating conditions 5 to 40°C (41 to 104°F) Temperature Stability ±3% for ceramic top, ±2% for aluminum top Temperature range 5° above ambient to 500°C (932°F) for ceramic top, 5° above ambient to 400°C (752°F) for aluminum top 配件
Shipping Weight For Use With Description Length VWR Catalog Number Unit 2.3 kg (5 lbs.) Temperature Probes, Thermometers, or other Glass Tubes Support Rod and Clamp Kit 45.7 cm (18") 11301-110 Each 货号：
Electrical Shipping Weight Maximum Capacity Overall Dimensions Top Plate Dimensions Top Plate Material VWR Catalog Number Unit 120V, 350W, 2.9A 2.8 kg (6.2 lbs.) 600 mL (20 oz.) 16.8W x 27.4L x 10.9H cm (65/8x 1025/32 x 45/16") 10.2 x 10.2 cm (4 x 4") Aluminum 97042-582 Each 120V, 350W, 2.9A 2.8 kg (6.2 lbs.) 600 mL (20 oz.) 16.8W x 27.4L x 10.9H cm (65/8x 1025/32 x 45/16") 10.2 x 10.2 cm (4 x 4") Ceramic 97042-578 Each 120V, 950W, 7.9A 4.8 kg (10.5 lbs.) 2.5 L (84.5 oz.) 25.1W x 37.6L x 10.9H cm (929/32 x 1413/16 x 45/16") 17.8 x 17.8 cm (7 x 7") Aluminum 97042-622 Each 120V, 950W, 7.9A 4.8 kg (10.5 lbs.) 2.5 L (84.5 oz.) 25.1W x 37.6L x 10.9H cm (929/32 x 1413/16 x 45/16") 17.8 x 17.8 cm (7 x 7") Ceramic 97042-618 Each 120V, 1500W, 12.5A 7.2 kg (15.9 lbs.) 6 L (1.6 gal.) 33W x 45.5L x 10.9H cm (13 x 1715/16 x 45/16") 25.4 x 25.4 cm (10 x 10") Aluminum 97042-662 Each 120V, 1500W, 12.5A 7.2 kg (15.9 lbs.) 6 L (1.6 gal.) 33W x 45.5L x 10.9H cm (13 x 1715/16 x 45/16") 25.4 x 25.4 cm (10 x 10") Ceramic 97042-658 Each
-
